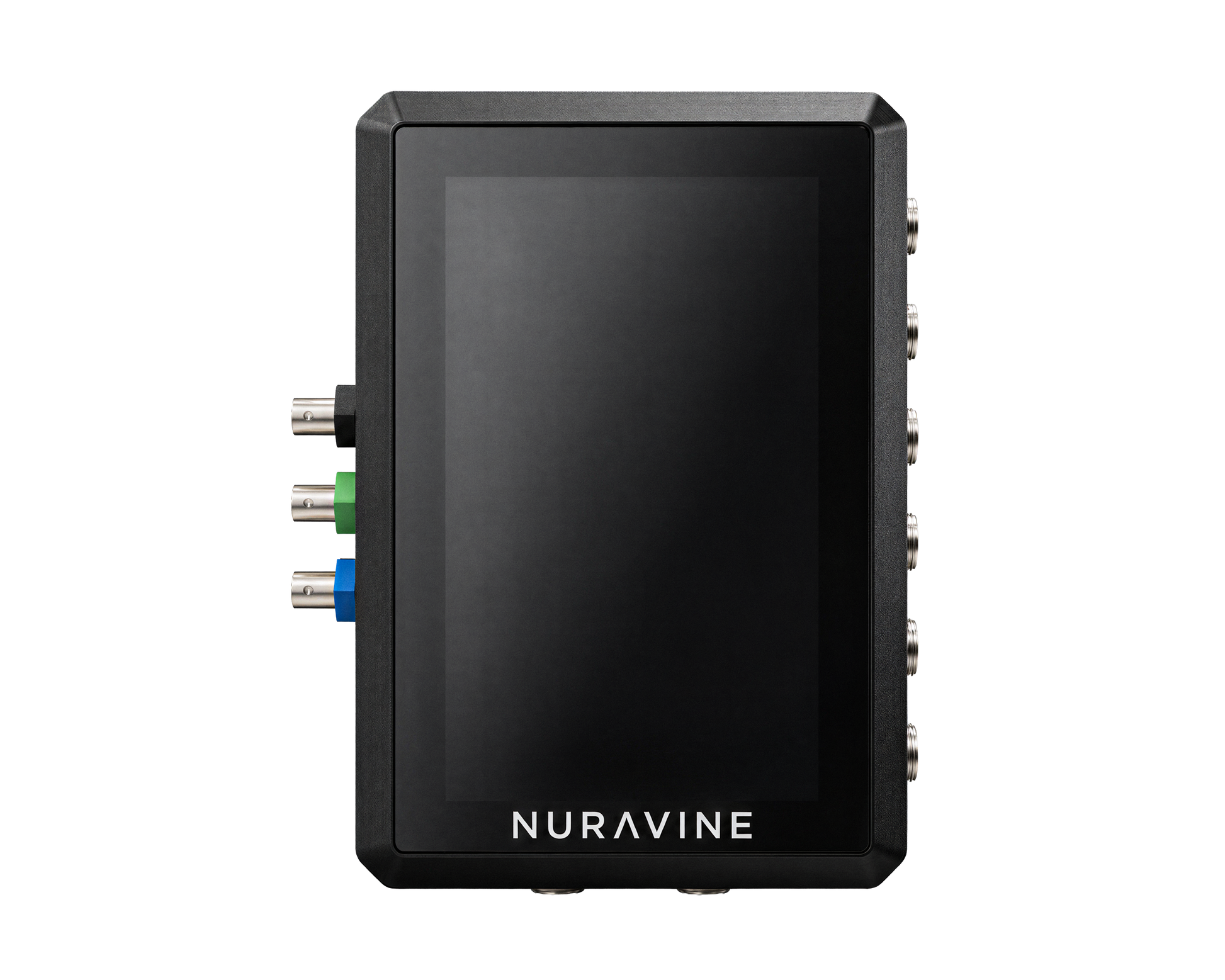

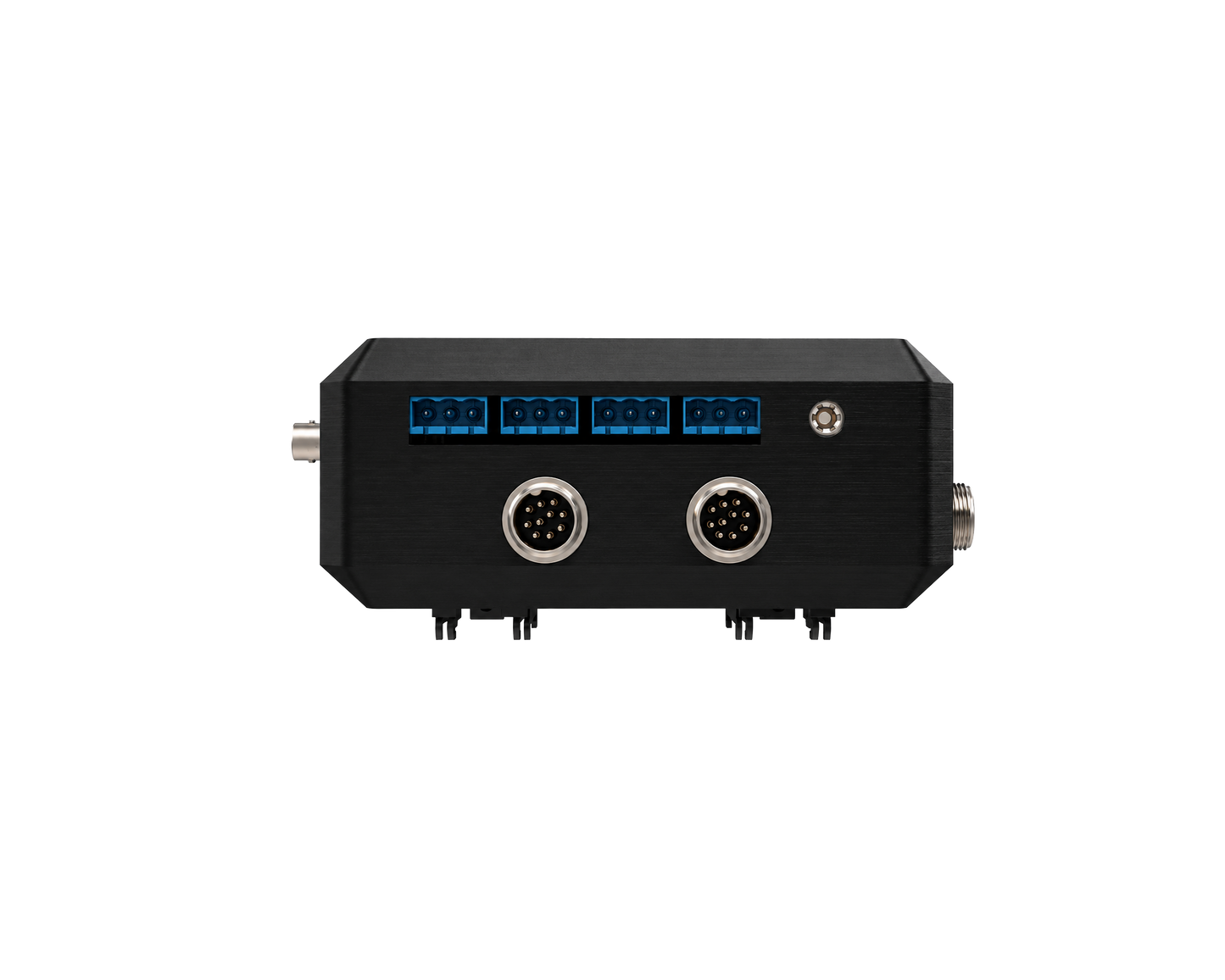

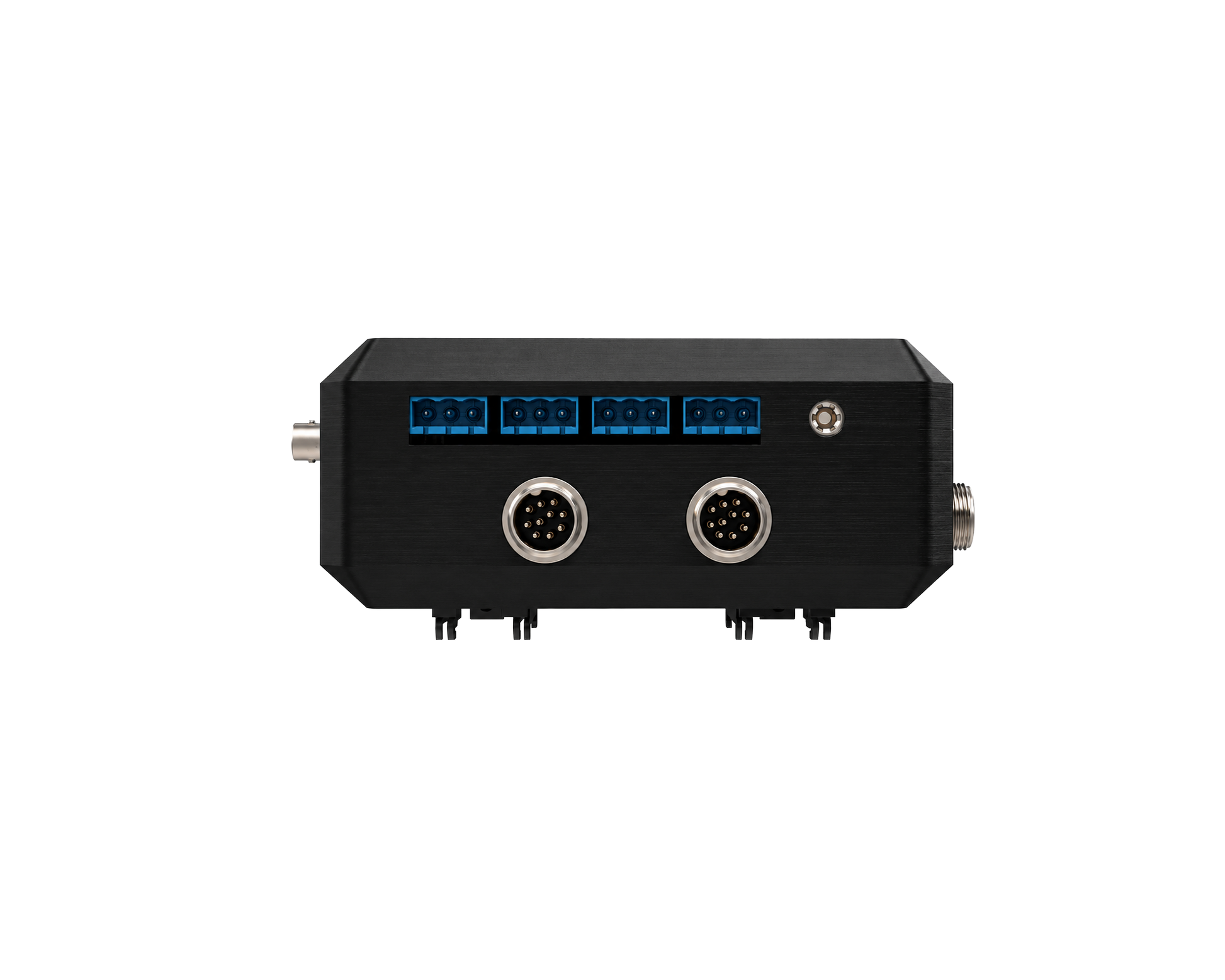

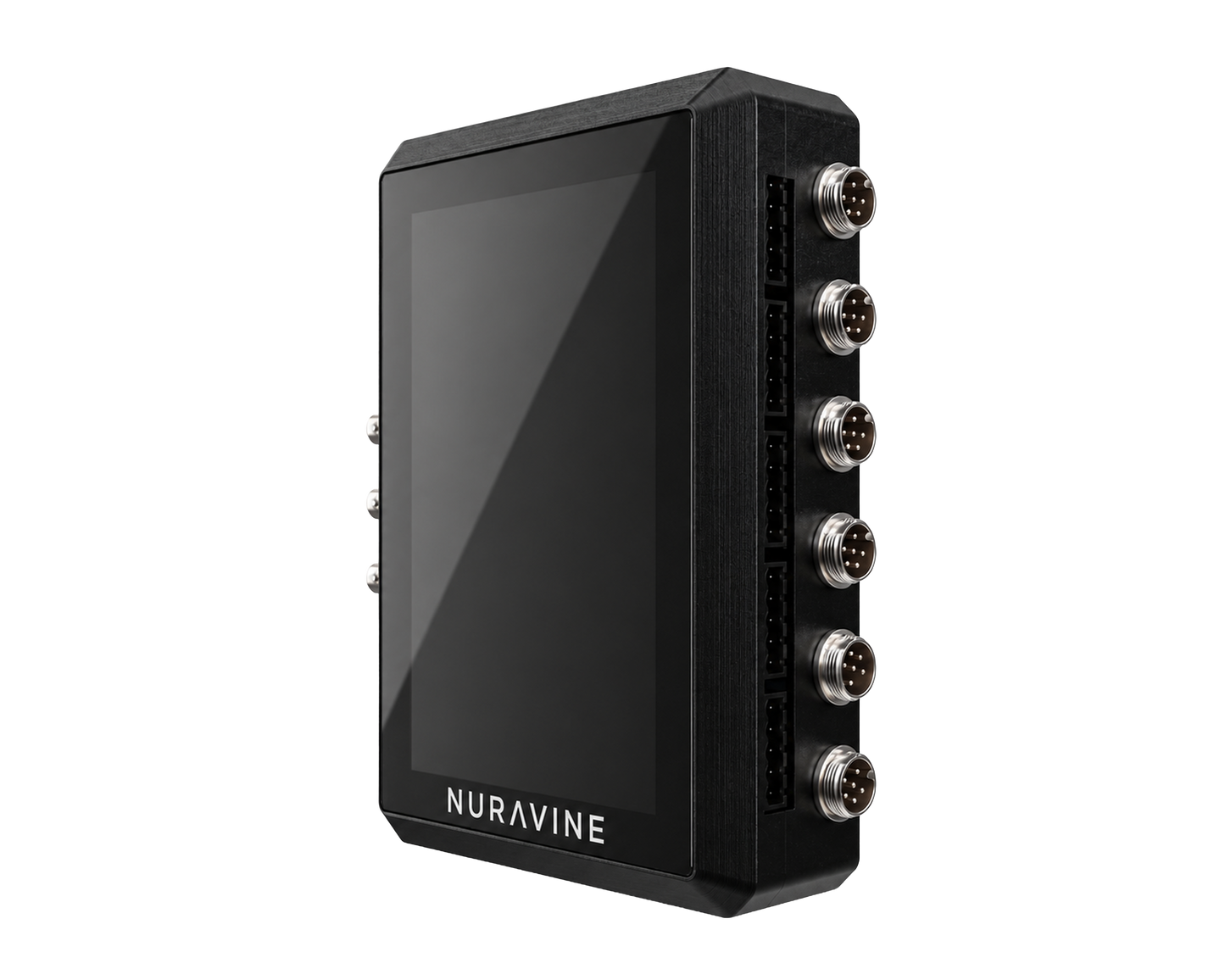

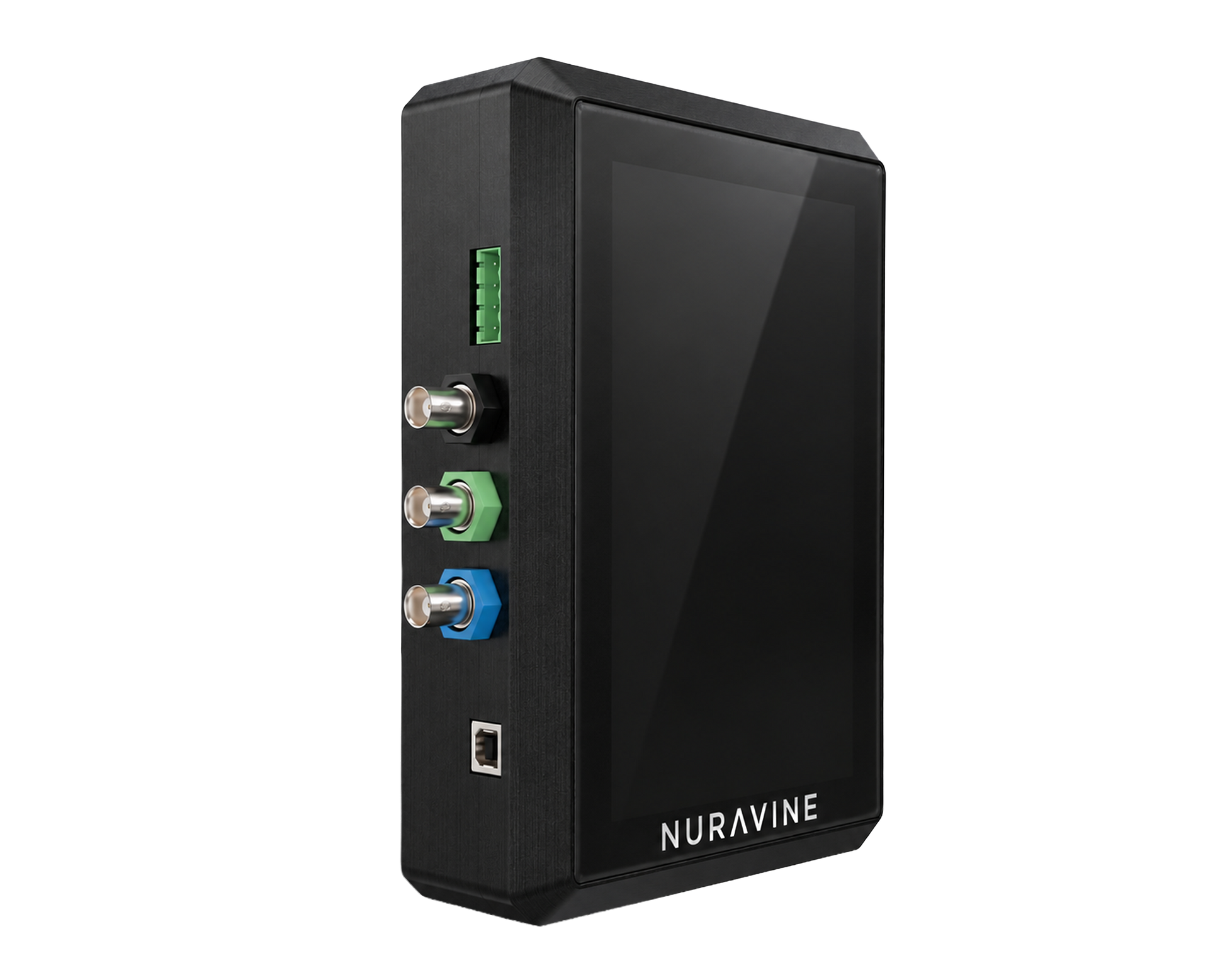

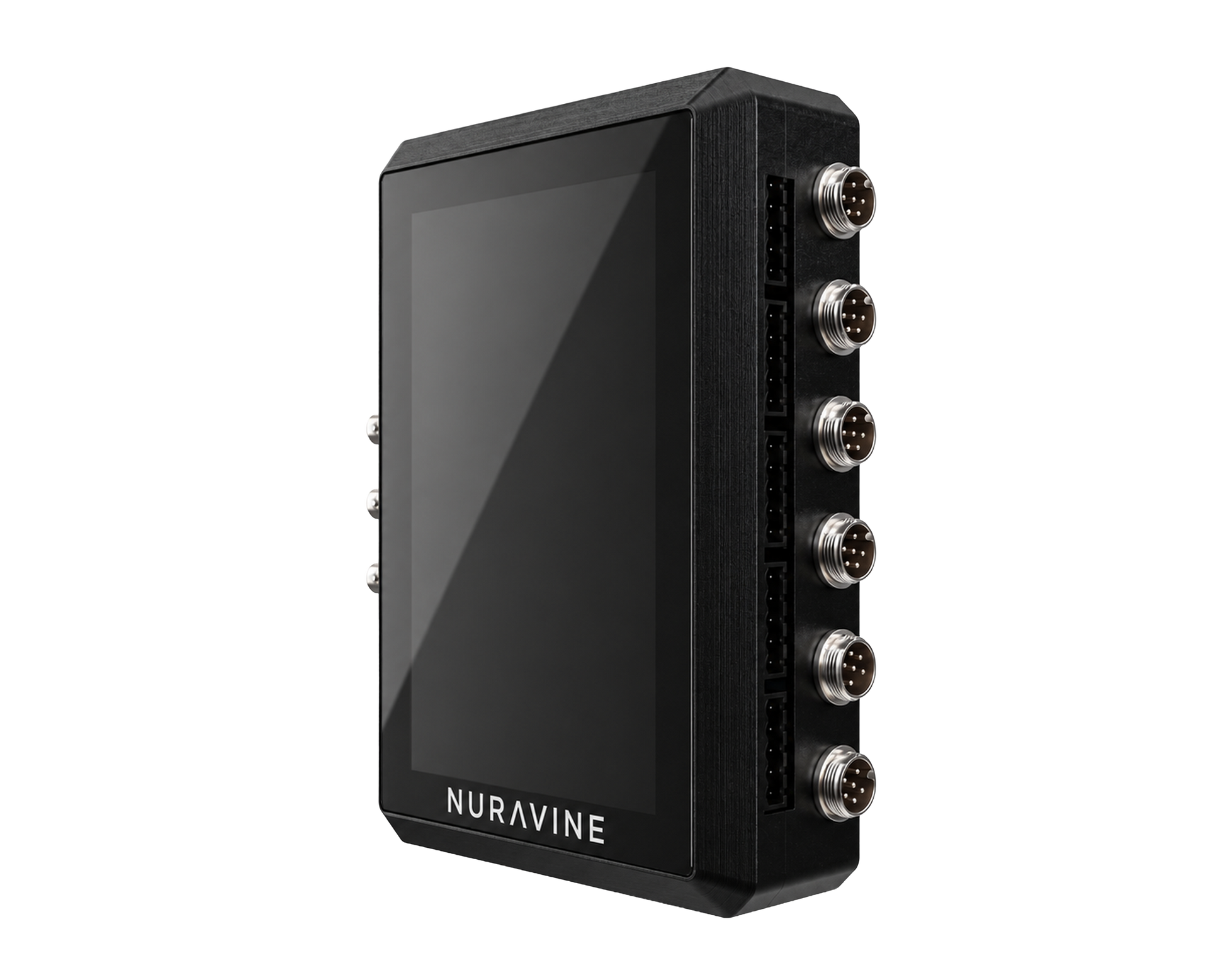

Aurora II

Aurora II is the all-in-one controller that combines the Aurora and the Flux into a single unit.

The Aurora II brings dosing, valve control, and crop steering together in one integrated controller. It runs your entire fertigation system from a single power supply, connects directly to the new Elixir 2 pump modules for recirculating, batch and inline dosing, and gives you the data and automation to dial in every irrigation event.

One controller, complete control

• Combines the dosing intelligence of the Aurora with the valve automation of the Flux in a single unit
• Drives your whole system from one power supply for simpler installs and less wiring
• Connects to the new Elixir 2 pump modules to enable precise inline dosing
• Built for crop steering, so you can shape vegetative and generative growth through irrigation strategy

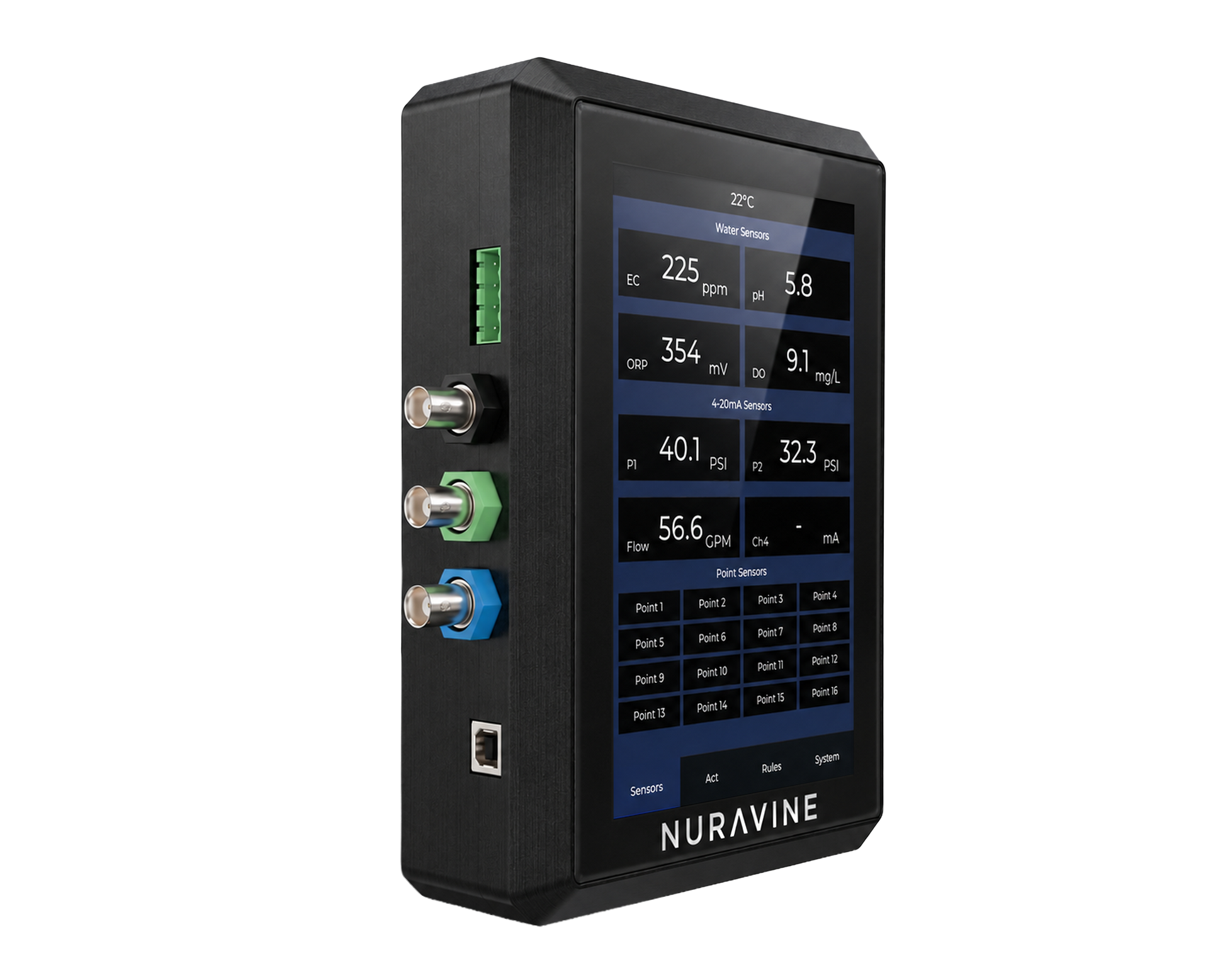

• High-contrast capacitive touchscreen with real-time readings, plus full cloud access from anywhere

Dosing

• Up to 18 dosing pumps for pH Up, pH Down, and any combination and ratio of nutrients
• Inline dosing through the Elixir 2 modules for continuous, accurate nutrient delivery
• Accurate dosing algorithm breaks doses into smaller segments for uniform distribution, ideal for recirculating systems
• Enter recipes straight from a feed chart and the Aurora II does the math for you
• Intelligent safety mechanisms stop dosing when they detect empty containers or disconnected sensors

Valve and irrigation control

• Controls 20x 24V DC valve outputs, four more than the Flux, to manage valves, pumps, and relays
• 10-amp valve power supply
• Reads standard flow meters in GPM for accurate volume tracking
• 4-20 mA sensor inputs for level, pressure, flow, and more
• RS485 Modbus connectivity to integrate additional devices
• Soil-monitoring capability to support substrate and crop steering strategies

Sensors and analytics

• Laboratory-grade pH and EC/Temperature sensing, with support for dissolved oxygen (DO) and ORP
• 2.4 GHz WiFi and cloud connectivity for remote monitoring and control
• Visualize sensor data, track nutrient use and dosing patterns, and make data-driven decisions to increase yields
• Over-the-air updates add new features over time, and the Aurora II works with all future Nuravine modules

Specifications

• Up to 18 dosing pumps
• 20x 24V DC valve outputs
• 10-amp valve power supply
• 4-20 mA sensor inputs
• RS485 Modbus connectivity
• Standard flow meter (GPM) support
• 2.4 GHz WiFi and cloud connectivity
• pH, EC/Temperature, DO, and ORP sensor support
• Soil-monitoring capability
• Single power supply for the entire system

Upgrade your grow with the Aurora II and run dosing, irrigation, and crop steering from one connected controller.
