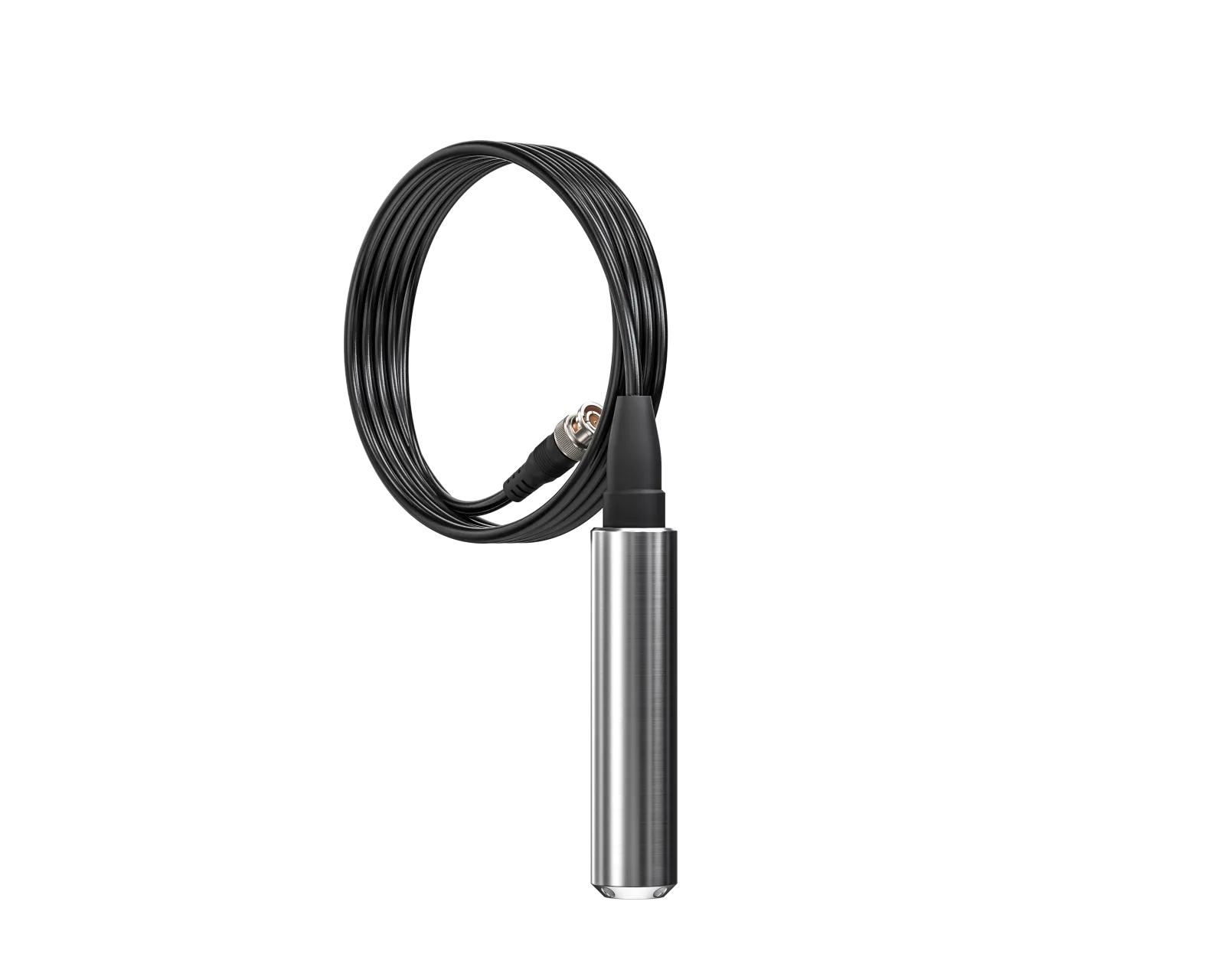

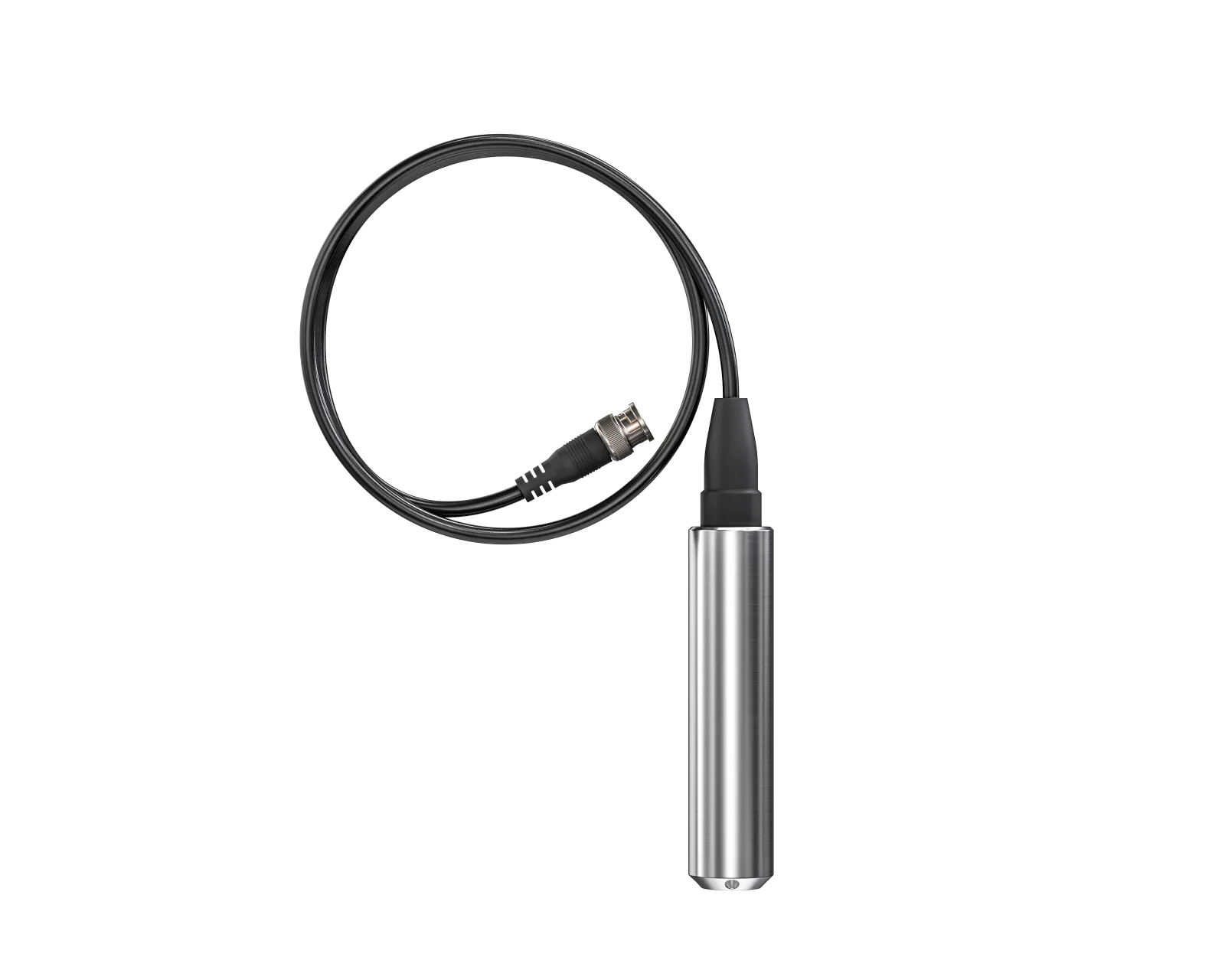

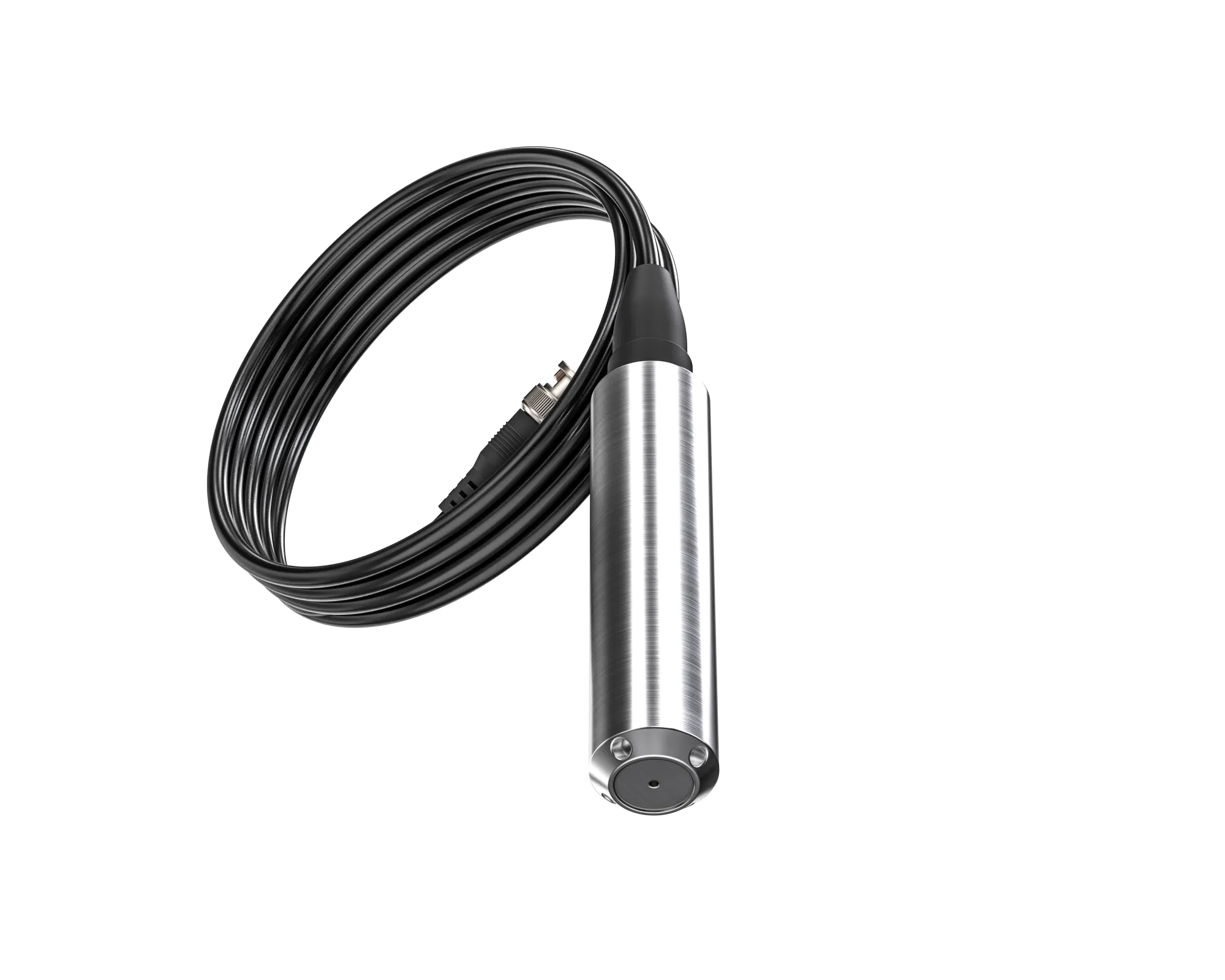

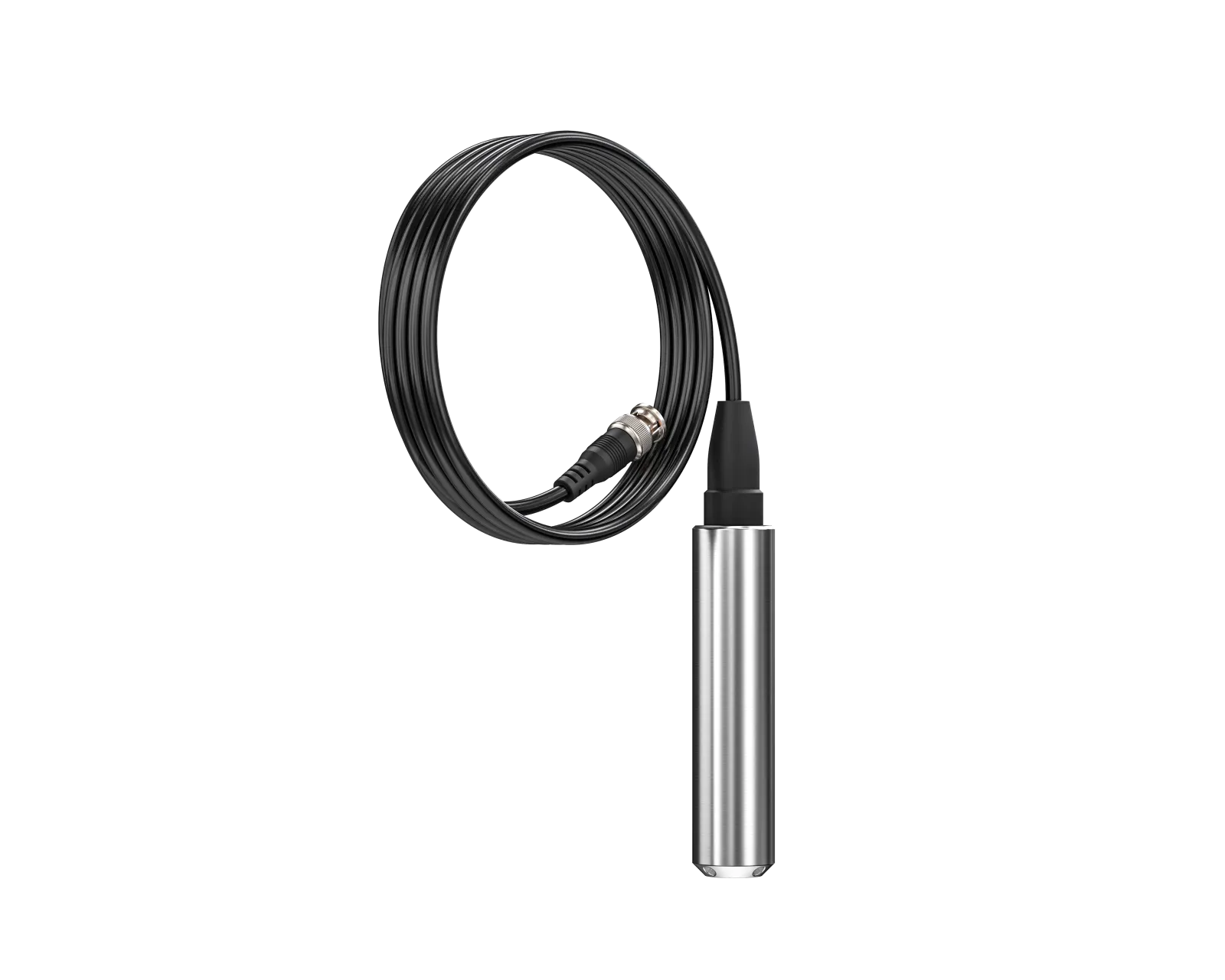

Pressure Level Sensor

The Nuravine Pressure Level Sensor is a submersible water level sensor that measures depth using a high-performance pressure element. Drop it into your reservoir and it reads water level up to 5 m (16.4 ft) with a 4-20mA output, for accurate, continuous level monitoring.

Measures water level up to 5 m (16.4 ft) deep
4-20mA output for a reliable, noise-resistant signal over long cable runs
Submersible, fully sealed stainless steel housing
IP68 rated for continuous immersion
Compatible with 4-20mA inputs, including the Aurora 2

Tech specs

Measurement Range: 0-5 m (0-16.4 ft) of water
Output: 4-20mA
Housing: 304 stainless steel

Protection Class: IP68
Accuracy: ±0.5% FS
