Controllers

Aurora II

Nuravine Aurora II all-in-one dosing and irrigation controller

The default choice. Dosing, irrigation, and crop steering from one controller.

Up to 18 dosing pumps (6 Elixir expansion ports)
20x 24V DC valve outputs
Inline, batch, and recirculating dosing
pH, EC, DO, ORP, and temperature sensing
2.4 GHz WiFi and Nuravine Cloud

Aurora

Nuravine Aurora dosing controller

Original Aurora, for dosing-only systems.

Connects to Elixir 3-pump modules for dosing
Pairs wirelessly with Flux for irrigation
pH, EC, DO, and ORP sensing
3.5 inch capacitive touchscreen
2.4 GHz WiFi and Nuravine Cloud

Flux

Nuravine Flux irrigation controller

Irrigation controller and rules engine. Pairs with the original Aurora.

16x 24V AC/DC valve outputs
4x 4-20 mA sensor inputs
RS485 Modbus, up to 32 devices
Rules engine: triggers, actions, schedules
Wireless comms with Aurora or other Flux units

Dosing pumps

Elixir II

Nuravine Elixir II three-pump dosing module

Three-pump dosing module for the Aurora II.

3 peristaltic pumps, 350 mL/min each
Accurate down to 1 mL
Food-grade Tygon tubing, resists acid and algae
Pulls nutrient from over 200 ft away
Aurora II only

Elixir Max

Nuravine Elixir Max high-flow single-head dosing pump

High-flow single-line dosing for the Aurora II.

Single head, up to 1,200 mL/min
Food-grade Tygon tubing
Heavy-duty wall-mount L-bracket
Pulls high-viscosity fluids without clogging
Aurora II only

Elixir Ultra

Nuravine Elixir Ultra high-flow dual-head dosing pump

Maximum throughput, dual-head dosing for the Aurora II.

Dual head, up to ~2,400 mL/min
Food-grade Tygon tubing
Heavy-duty wall-mount L-bracket
Pulls high-viscosity fluids without clogging
Aurora II only

Elixir

Nuravine Elixir three-pump dosing module

Original three-pump dosing module, for the original Aurora.

3 peristaltic pumps, 350 mL/min each
Daisy-chain for 300+ pump systems
Accurate down to 1 mL
Pulls nutrient from over 200 ft away

Lighting

Ra (0-10V)

Nuravine Ra grow light controller

Automated grow light control, analog dimming.

4 independent 0-10V dimming channels
Up to 4 lighting zones, independent schedules
On-device recipes, run offline
RJ12 daisy-chain wiring
5V USB-C power

Ra (RS-485)

Nuravine Ra grow light controller

Automated grow light control, digital multi-channel.

Digital multi-channel control over RS-485
Per-channel spectrum control, live power view
On-device recipes, run offline
5V USB-C power
+ temperature safety sensor: $228.00

See the hardware in a system

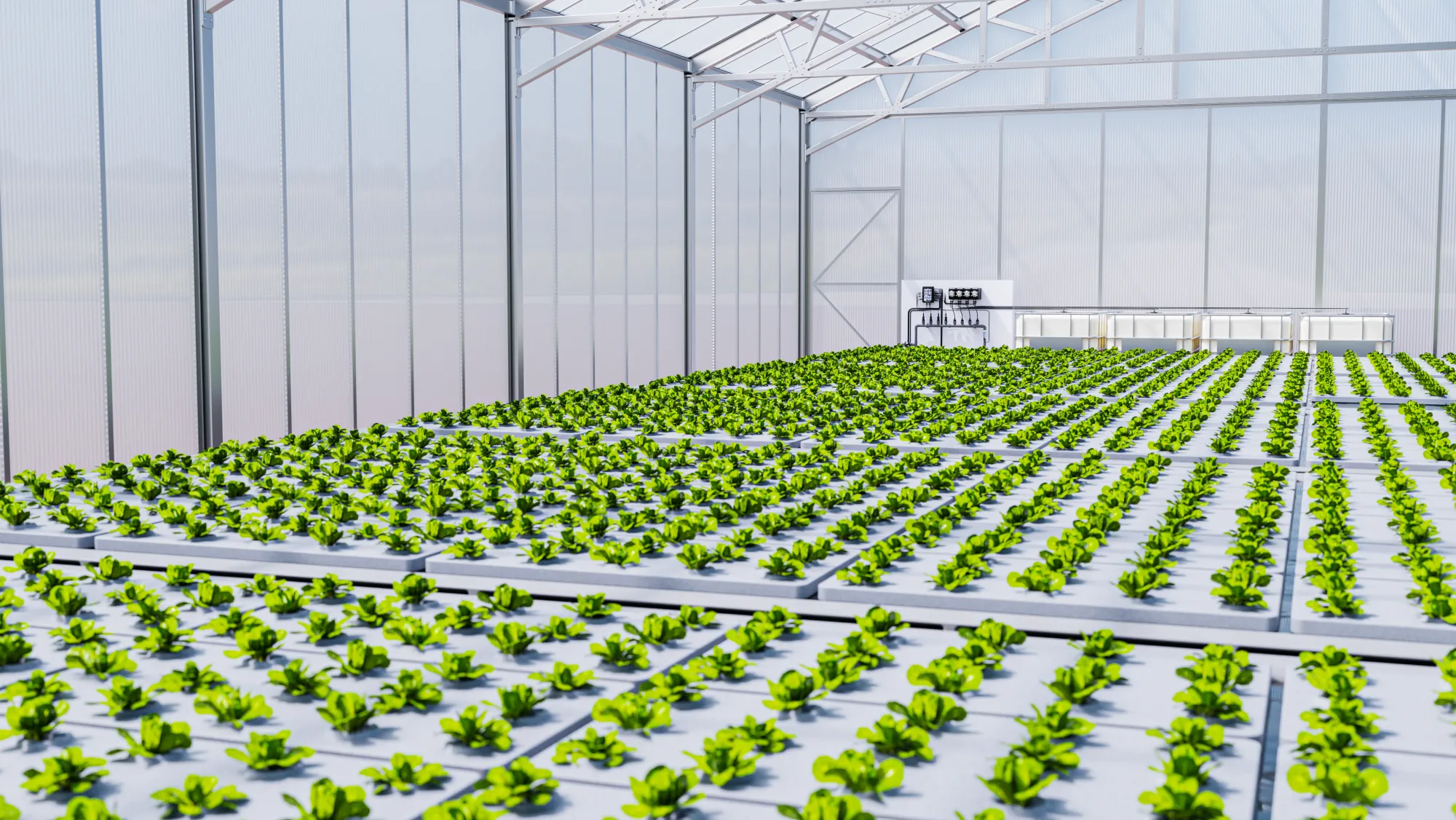

Rows of DWC lettuce filling a commercial greenhouse, fed by a single Nuravine dosing station

Nuravine inline dosing setup feeding a multi-zone irrigation system

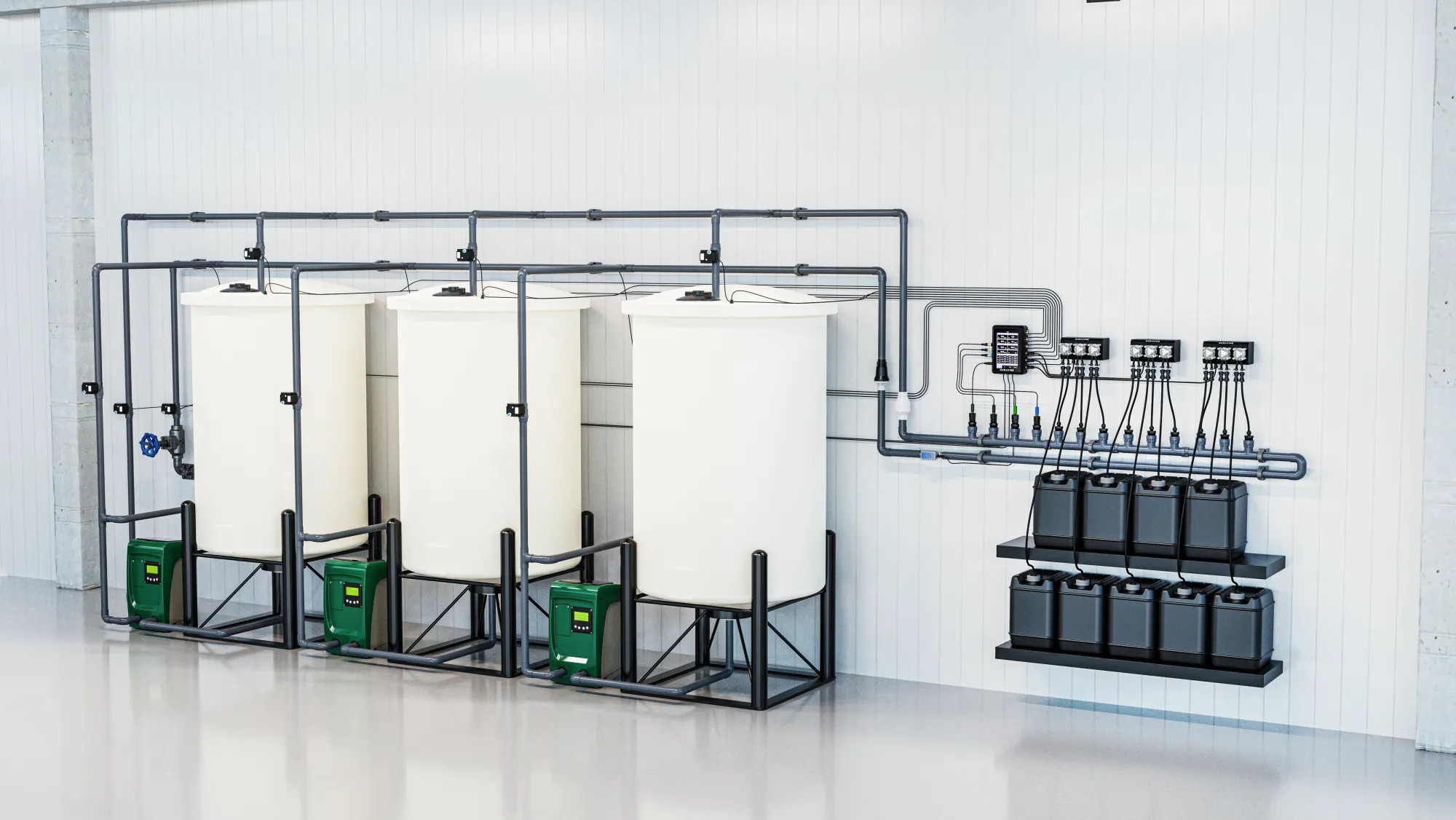

Nuravine multi-tank batch dosing wall with three mixing tanks, Elixir pumps, and nutrient jugs feeding multiple zones

2-year warranty on every product

Every Nuravine device ships from Woodstock, New York. Talk to an engineer if you are not sure what you need.
